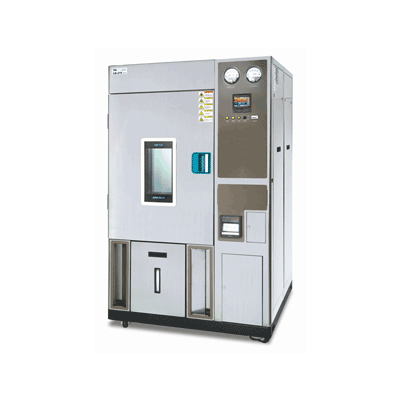

TỦ SẠCH NHIỆT ĐỘ JEIOTECH, ĐỘ ẨM, 270 L
SKU:TH-CR-270 Hãng sản xuất: JEIOTECH Xuất xứ: Hàn QuốcMÔ TẢ SẢN PHẨM
Tính năng kỹ thuật:
Tính năng an toàn:
- Automatic shut off after overheat alarm.
- Low and empty water level alarm.
- Power supply leakage breaker.
- Over current protection.
- Overheat protection.
- Door open alarm.
Tính năng vận hành:
- Microprocess PID control / Auto-tuning / Calibration.
- 7 inch colorful interactive touch type LCD controller.
- Set value and present value are clearly visible together on display.
- Operating progression visible in graph mode allow for direct data interpretation.
- Temperature and other operating parameters recorded with use of an optional recorder. (optional)
- Sufficient programmable control support.
- Programming operation.
- Computer interface
- RS-485 communication port enables connection of up to maximum 9 units. Simultaneous monitoring and operating of multiple units is an available feature. (optional)
- Program patterns are simple to set with the use of our software.
- Storage of program information, backup of value settings / recovery, and temperature values.
- RS-232C port as standard offer.
Tính năng cấu trúc:
- Silicone-free construction for clean environment.
- Corrosion resistance stainless steel chamber and electric polished humidification tank.
- Built-in differential pressure gauge for easy observation of HEPA filter condition.
- Exhaust duct is located at the upper right side of the unit to avoid influence other devices.
- Maintenance of water supply are easily performed with a front water tank. Water level check indicated by water level bar in the tank.
- Water supply during operation is also available for long term test purposes.
- Direct water system provides user great convenience when performing long-term tests. (optional)
- Clear observation of samples.
- Tempered glass door with built in wire heater.
- Energy efficient, long life span LED lighting.
- Wider view, inner glass door is available for monitoring of samples. (optional)
- Cable port for external probes or wires. 50mm diameter cable port comes standard on the left side of the unit. Additional 50mm or 80mm diameter cable ports can be custom ordered. (optional)
- Casters for easy mobility during installation or relocation.
THÔNG SỐ KỸ THUẬT
Thông số kỹ thuật:
Model | TH-CR-270 | ||
Chamber Volume (L / cu ft) | 270 / 9.5 | ||
Controller | Programmable, Touch screen type controller (5.7" Color monitor)Local controller (Fixed - command control) | ||
Temperature | Range (℃ / ℉) | -35 to 100 / -31 to 212 without humidity | |
Fluctuation 1) | 0.5 / 0.9 | ||
Variation 1) | 0.5 / 0.9 | ||
Time | Heating | 60 From -35℃ to 120℃ (-31℉ to 248℉) | |
Cooling | 65 From 20℃ to -35℃ (68℉ to -31℉) | ||
Humidity | Range (%RH) | Full Range : 30 to 90 | |
50 to 90 at 20℃ (68℉) | |||
Fluctuation 1) (±%RH) | 3 | ||
Variation 1) (±%RH) | 3 | ||
Cleanliness | Class 100 (ISO 14644-1) | ||
Refrigeration | System | Mechanical single stage refrigerator system (air-cooled condenser) | |
Refrigerant | R-404A | ||
Cooler | Plate fin cooler | ||
Heater | Material | Ni-Cr Wire Heater / SUS sheath Heater | |
Sensor | Temperature | Pt 100 | |
Humidity | Electronic sensor - Free of drying a wet pack and good reaction time | ||
Material | Interior | Stainless steel #304 | |
Exterior | Stainless steel #304, Steel with powder coating | ||
Insulation | Polyurethane | ||
Door | Glass wool | ||
*Silicon Free (optional) | EPDM for door packing, chamber sealing and tubePoly Urethane for DI water inlet & drainage | ||
Air Flow | Sirocco fan | ||
Water Supply | Capacity | 15L (0.53cu ft) - Cartridge type | |
Water Quality | pH6.2 to 7.2 / Electrical conductivity 20㎲ /cm to below | ||
Quantity of Wire Shelves | 2 / 10 | ||
Distance of between Shelves | 40 /1.6 | ||
Dimension | Interior (mm / inch) | 600×700×648 / 23.6×27.6×25.4 | |
Exterior (mm / inch) | 1180×1120×1935 / 46.5×44.1×76.2 | ||
Viewing Windows | 200×330 / 7.9×13 | ||
Net Weight (kg / lbs) | 400±10 / 881.8±22 | ||
Cable Port | Basically one hole provided / Ø 50mm (2")Optionally max. two holes available / Ø 50 or 80mm (2 or 3.2") | ||
Interface Port | Basically RS-232C [RS-485 [Maximum 9 Units Control] - optional] | ||
Electrical Requirements (230V, 1ph) |
| 50Hz / 29A | |
Cat. No. |
| AAH83012K |
CUNG CẤP GỒM / PHỤ KIỆN
Cung cấp bao gồm:
- Tủ sạch nhiệt độ, độ ẩm, 270 lít; Model: TH-CR-270; Code: AAH83012K
- Phụ kiện tiêu chuẩn
- Tài liệu hướng dẫn sử dụng tiếng Anh + tiếng Việt
