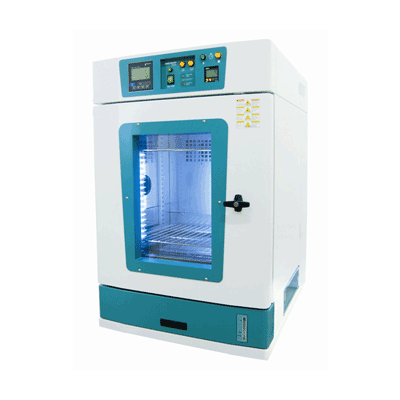

TỦ NHIỆT ĐỘ JEIOTECH, ĐỘ ẨM FINGER PRINT ,100 L
SKU:TH-PF-100 Hãng sản xuất: JEIOTECH Xuất xứ: Hàn QuốcMÔ TẢ SẢN PHẨM
Tính năng kỹ thuật:
Tính năng an toàn:
- Built in door lock for crucial evidence.
- Automatic shut off after overheat alarm.
- Low and empty water level alarm.
- Power supply leakage breaker.
- Over current protection.
- Overheat protection.
- Door open alarm.
Tính năng vận hành:
- Microprocessor PID control / Auto-tuning / Calibration.
- Precise temperature & humidity control.
- Faster fingerprint development.
- Rapid recovery time after door has been opened.
- User friendly LCD controller.
- Set value and present value are clearly visible together on display.
- Operating progression visible in graph mode allow for direct data interpretation.
- Temperature and other operating parameters recorded with use of an optional recorder. (optional)
- Sufficient programmable control support.
- Intuitive control panel. Sight Lamp, Window Clean, and Water Level indicators.
- Digital timer with alarm
- Start / Reset button for easy operation.
- Wide display for easy visual of time remaining.
- Set time expired alarm.
- Computer interface.
- RS-485 communication port enables connection of up to maximum 9 units. Simultaneous monitoring and operating of multiple units is an available feature. (optional)
- Program patterns are simple to set with the use of our software.
- Storage of program information, backup of value settings, recovery, temperature, humidity values.
- RS-232 communication port comes standard.
Tính năng cấu trúc:
- Light weight and compact design with high performance.
- Corrosion resistant stainless steel chamber.
- Air-tight door closure with perfect sealed packing.
- Heat-resistant silicone packing completely blocks high heat leakage from the inner chamber.
- Maintenance of water supply are easily performed with a front water tank. Water level check indicated by water level bar in the tank.
- Water supply during operation is also available for long term test purposes.
- Direct water system provides user great convenience when performing long-term tests. (optional)
- Clear observation of fingerprint development processes.
- Tempered glass door with built in wire heater.
- Energy efficient, long lasting LED lighting.
- Easy operating lamp button.
- Cable port for introduction of external probes or wires.
- 50mm diameter cable port comes standard on the left side of the unit.
- Additional 50mm or 80mm diameter cable ports, custom ordered. (optional)
- Stand with casters allow for space-saving. (optional)
- Chambers stackable, up to two levels.
THÔNG SỐ KỸ THUẬT
Thông số kỹ thuật:
Model | TH-PF-100 | |
Chamber Volume (L / cu ft) | 100 / 3.53 | |
Controller | PID control (LCD Type) | |
Temperature | Range (℃ / ℉) | 40 to 100 / 104 to 212 without humidity |
Fluctuation (±℃ / ℉) at 100℃ | 0.5 / 0.9 | |
Variation (±℃ / ℉) | 0.5 / 0.9 | |
Humidity | Range (%RH) | FULL RANGE : 50 to 95 |
Fluctuation (±%RH) | 3 | |
Variation (±%RH) | 3 | |
Heater | Material | Ni-Cr Wire Heater / SUS cartridge Heater |
Drying Bulb | 400W | |
Humidity Bulb | 400W | |
Sensor | Temperature | Pt 100 |
Humidity | Electronic sensor (free of drying a wet pack and good response time) | |
Air Flow | 2 set of sirocco fan (60W) | |
Material | Interior | SUS #304 (2B polish) |
Exterior | SUS #304 & Steel, 1t, Double painted & baked | |
Insulation | Polyurethane (70mm) | |
Door | Glasswool | |
Water Tank | Capacity (L / cu ft) | 9 / 0.32 |
Quality | pH6.2 ~ 7.2, Electrical conductivity 20㎲ / cm to below | |
Viewing Window (mm / inch) | 280×430 / 11.02×16.9 | |
Cable Port | Basically one hole provided / Ø 50mm (2")Optionally max. two holes available/ Ø 50 or 80mm (2 or 3.2") | |
Interface | Basically RS-232C [RS-485 [Maximum 9 Units Control] - optional] | |
Dimension | Interior (mm / inch) | 500×380×530 / 1.97×15×20.9 |
Exterior (mm / inch) | 670×845×1045 / 26.4×33.3× 41.15 | |
Net Weight (kg / lbs) | 115kg±5kg / 253.5±11 | |
Electrical Requirements | AC230V, 1ph, 50Hz | 4.3A |
Cat. No. | AAH82332K |
CUNG CẤP GỒM / PHỤ KIỆN
Cung cấp bao gồm:
- Tủ nhiệt độ, độ ẩm Finger Print, 100 lít; Model: TH-PF-100; Code: AAH82332K
- Phụ kiện tiêu chuẩn
- Tài liệu hướng dẫn sử dụng tiếng Anh + tiếng Việt
